Disposable Two-Lumen Silicone Foley Catheter Medical Grade

Name: Disposable Two-Lumen Silicone Foley Catheter Medical Grade
Brand: Shenzhen Tenchy Silicone&Rubber Co.,Ltd
SKU: TCM-005
Price: 5,508.00 USD
Availability: InStock

جزئیات محصول

محل منبع: چین

نام تجاری: TENCHY

گواهی: USP CLASS VI

Model Number: TCM-005

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش: 500

قیمت: NEGOTIATBLE

Packaging Details: 10 pcs/box (Individually sterile sealed)

زمان تحویل: 5-8 روز

شرایط پرداخت: D/A ، D/P ، T/T ، Western Union ، MoneyGram

قابلیت ارائه: 1000 عدد در روز

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیح محصول

جزئیات محصول

برجسته کردن:
                                                disposable silicone foley catheter,two-lumen medical catheter,medical grade silicone tube, two-lumen medical catheter, medical grade silicone tube


توضیح محصول

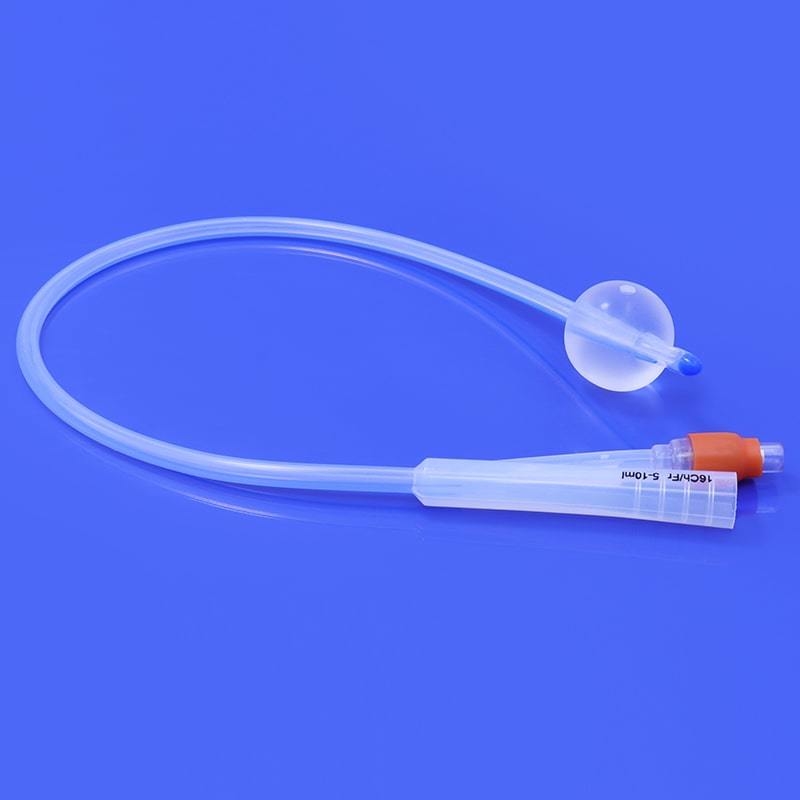

Disposable Two-Lumen Silicone Foley Catheter

Core Advantages: Medical-grade Silicone × Dual-Lumen Fluid Dynamics × Visual Operation Support

I. Innovative Structure & Material

Feature	Technical Specifications
Dual-Channel System	① Inflation Lumen: Spherical balloon with precision pressure control, anti-collapse ② Drainage Lumen: High-flow lumen (>8mm²), anti-clog design
Medical Silicone Tubing	ISO 10993 biocompatibility certified: - Zero cytotoxicity/sensitization/irritation - Low protein adsorption surface (≤3μg/cm²)
360° Symmetrical Balloon	Radial expansion deviation <5%,burst pressure ≥6ATM (Complies with YY 0325)

II. Clinical Enhancements

· Visualization System:

o Embedded barium sulfate line (X-ray visible length ≥35cm)

o Biomarker scale (5mm graduations, ±0.3mm tolerance)

· Kink-Resistant Tubing:

o Flexural strength ≥150N (ASTM D790)

o Chemical resistance: Compatible with glutaraldehyde/peracetic acid disinfectants

· Sterility Assurance:

o EO sterilization (residue ≤0.1ppm)

o Dual sterile barrier packaging (ISO 11607)

Enhanced Specifications Table

Core Parameters

Size (Fr)	Outer Ø (mm)	Lumen Area (mm²)	Balloon Vol (ml)	Max Flow (ml/min)	Connector Type
8Fr	Ø2.67	3.5	3-5	35	Standard Luer lock
12Fr	Ø4.00	8.4	5-10	85	Anti-reflux valve
16Fr	Ø5.33	14.1	5-15/30	150	Rotary diverter
20Fr	Ø6.67	22.1	5-15/30	240	Suction port
26Fr	Ø8.67	37.9	5-15/30	400	Irrigation 3-way

Performance Validation

Test Item	Standard Value	Compliance Standard
Balloon Fatigue Resistance	>5,000 inflation/deflation cycles	ISO 20695
Tensile Strength	≥15N/mm²	GB/T 1040.3
Short-term Biofilm Formation	<10² CFU/cm² (72hrs)	ASTM E2180
Acute Hemolysis Rate	≤0.8% (vs. 5% threshold)	ISO 10993-4
